Two operating philosophies
Choose classic HX operation with guided flushing, or activate Brew Temperature Control for direct group-temperature management.
By ECM Machines
ECM Mechanika Max Espresso Machine (in stock)
Regular price
$3,799.00
Regular price
Sale price
$3,799.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Mechanika MAX · Smart HX
ECM Mechanika MAX
Heat-exchanger power.
Intelligently controlled.
A compact premium HX machine with Brew Temperature Control, Flush Advisor, programmable pre-infusion and scheduling, a quiet rotary pump and polished stainless-steel craftsmanship.
Smart HXBTC 88–95°CPID + shot timerRotary pump
1.9 LHX boiler
3.0 LWater tank
27.5 cmCompact width
58 mmECM E61 group
The intelligent heat exchanger
Commercial-style steam performance with smarter brew-temperature guidance.
Mechanika MAX pairs a 1.9-litre stainless-steel heat-exchange boiler with ECM’s thermosyphon E61 group, allowing espresso and steam to be prepared in the same workflow. Its Smart HX electronics add direct brew-temperature control or guided flushing—two approaches tailored to different barista preferences.
Nine defining advantages
HX performance.
Maximum intelligence.
Set 88–95°C
A sensor at the top of the brew group enables direct brewing-temperature selection across a useful range for dark, medium and light roasts.
Guidance at the group
In conventional HX mode, the display indicates when a cooling flush is needed and guides its duration until the target condition is restored.
Active + passive control
Program pump-driven wetting and pump-off soaking independently to encourage more even saturation before full extraction pressure.
Shot timing and settings

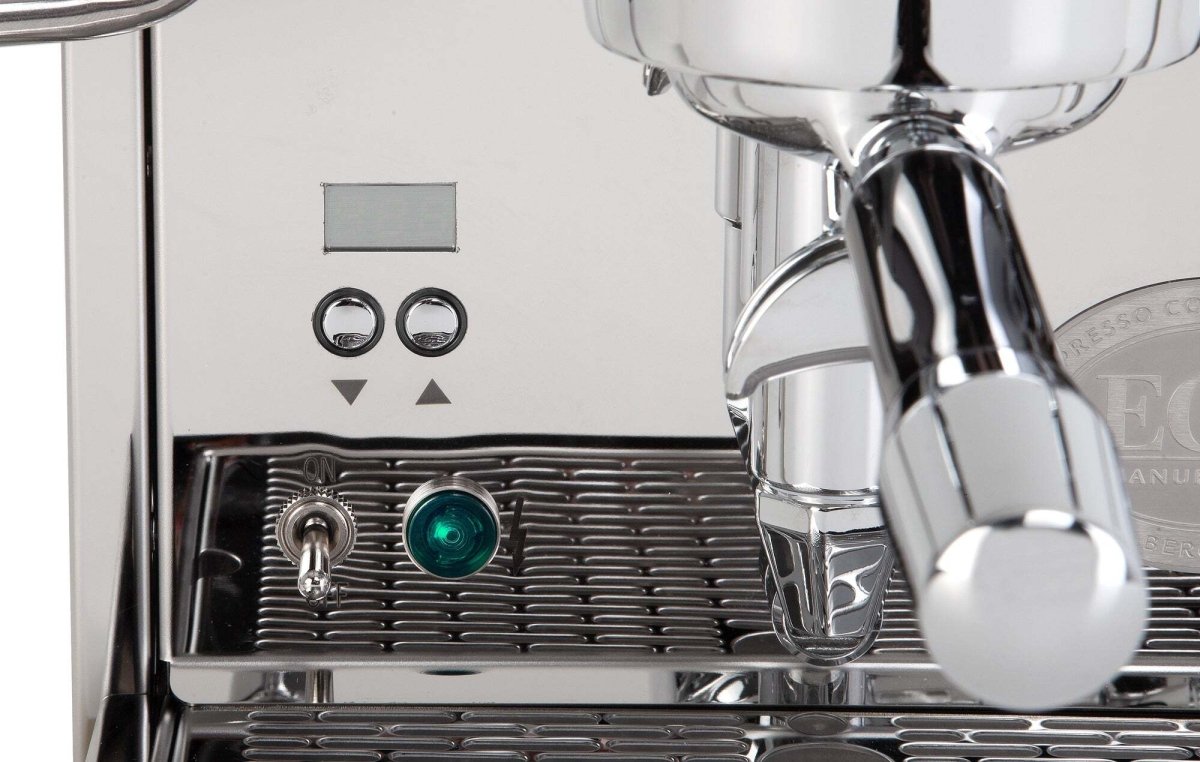

The discreet display manages brew and boiler temperatures, shot time, reminders, ECO behaviour, scheduling and advanced adjustments.
Quiet professional delivery
A robust low-noise rotary pump delivers smooth pressure and enables direct-water operation for a permanent installation.
Tank or direct line
Switch electronically between the removable 3-litre reservoir and mains-water supply to suit your counter and workflow.
Immediate valve control
Commercial-style joystick valves put full steam and hot-water output at hand with quick, ergonomic operation.
Only 27.5 cm wide
The narrow polished-steel body delivers full rotary-pump HX capability while preserving valuable workspace beside the machine.
Smart HX flexibility
Choose direct control—or expert guidance.
BTC mode regulates the system around your selected 88–95°C brew temperature. Prefer a traditional HX workflow? Activate Flush Advisor and the display evaluates group conditions, signalling when a cooling flush is required and when the machine is ready for extraction.
Intelligent daily control
Program the machine
around your routine.
Active Pre-InfusionProgrammable pump operation gently wets the puck before full extraction pressure.
Passive Pre-InfusionA selectable 0–9 second pump-off soak supports gradual, even saturation.
Weekday / Weekend SchedulesTwo automatic on/off times can be stored for weekdays and two more for weekends.
Ownership RemindersECO timing, group-cleaning alerts and water-filter reminders support daily care.
Flexible installation
Use the tank.
Or connect directly.
A quiet rotary pump supports both reservoir and direct-water operation. Keep the machine self-contained with its removable 3-litre tank, or use the included plumb-in equipment to create a permanent espresso station.
✓Switchable tank or mains-water supply
✓Low-noise rotary pump
✓Included plumb-in kit
✓Compact 27.5 cm footprint
Stainless steel from every angle
German engineering.
Unmistakable ECM design.
A complete professional package
Everything required to begin.
Mechanika MAX includes ECM single- and double-spout portafilters with angled handles, single and double baskets, tamper, plumb-in kit and product documentation—supporting either reservoir or permanent installation from the start.
Technical specifications
ECM
Mechanika MAX
North American 110–120 V Smart HX configuration. Dimensions are stated without the portafilter installed.
Power supply110–120 V
Power1400 W
PumpRotary
SystemSmart heat exchanger
BoilerApprox. 1.9 L stainless
Water tankApprox. 3.0 L
Brew group58 mm ECM E61
BTC range88–95°C
Water supplyTank or direct line
Dimensions275 × 445 × 405 mm
Weight23.5 kg
Pre-infusionActive + passive
DisplayPID + shot timer
ValvesJoystick technology
HousingPolished stainless steel
Mechanika MAX · Smart HX
Traditional heat-exchanger strength, intelligently refined.
The ECM Mechanika MAX combines powerful simultaneous brewing and steaming with direct brew-temperature control, Flush Advisor guidance, programmable pre-infusion and rotary-pump flexibility in a remarkably compact body.
