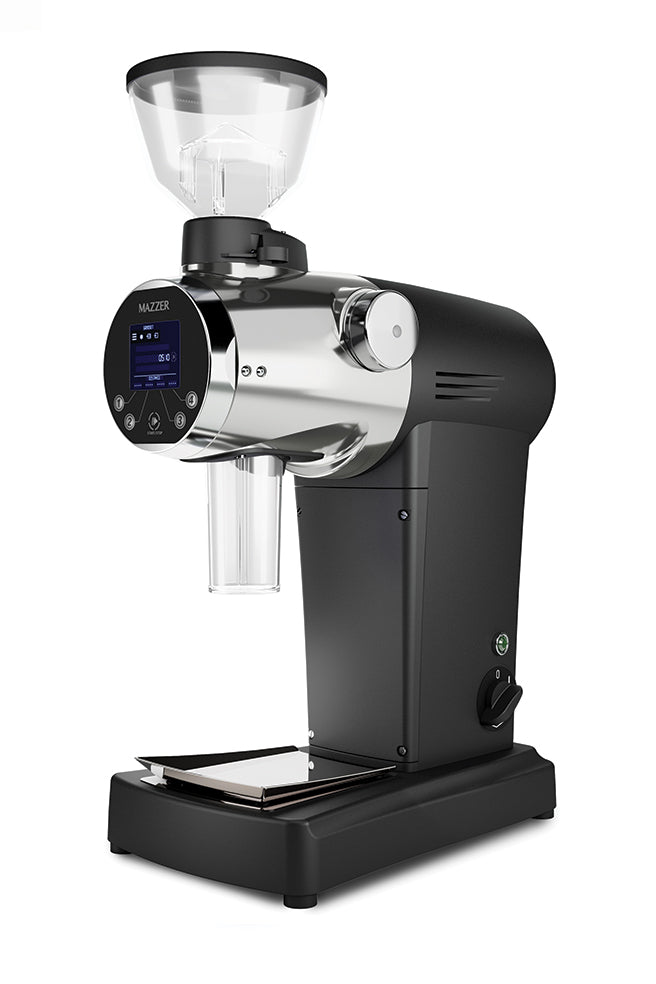

Mazzer ZM

Mazzer ZM features cutting-edge technology and unique functionalities. It boasts a motor-operated digital grind adjustment system allowing the barista to control the distance between the burrs in microns so that the grind setting is understandable, accurate and repeatable. The electronic True Zero calibration ensures that the grind settings are identical from grinder to grinder. Excellent burr parallelism gives consistent particle size distribution. A coffee retention of under 0.45 grams allows for single dosing. These features create a grinder that fits perfectly in the workflow of a specialty cafe.

Click Here for Brochure

DESIGNED FOR SPECIALTY COFFEE LOVERS

• Double fan cooling system with electronic control. Low RPM (900 – 1050Hz) with excellent grinding speed
• On-demand dosing capability – adjustable grinding time
• Patented lockable canister to keep coffee grounds from getting on the counter
• The digital display flips to the side to allow easy access to the grinding chamber for cleaning and burr replacement
• Can be equipped with special steel flat burrs for filter coffee (k151F – k151G), espresso (k151B) or hybrid burrs for espresso and filter (k151I)
• Secure double safety switch

EXCELLENT BURR PARALLELISM

The special steel k burrs and excellent burr parallelism give consistent particle size distribution.

TRUE ZERO CALIBRATION

The Electronic TRUE ZERO calibration ensures that the ZM grind settings are identical from grinder to grinder, café to café.

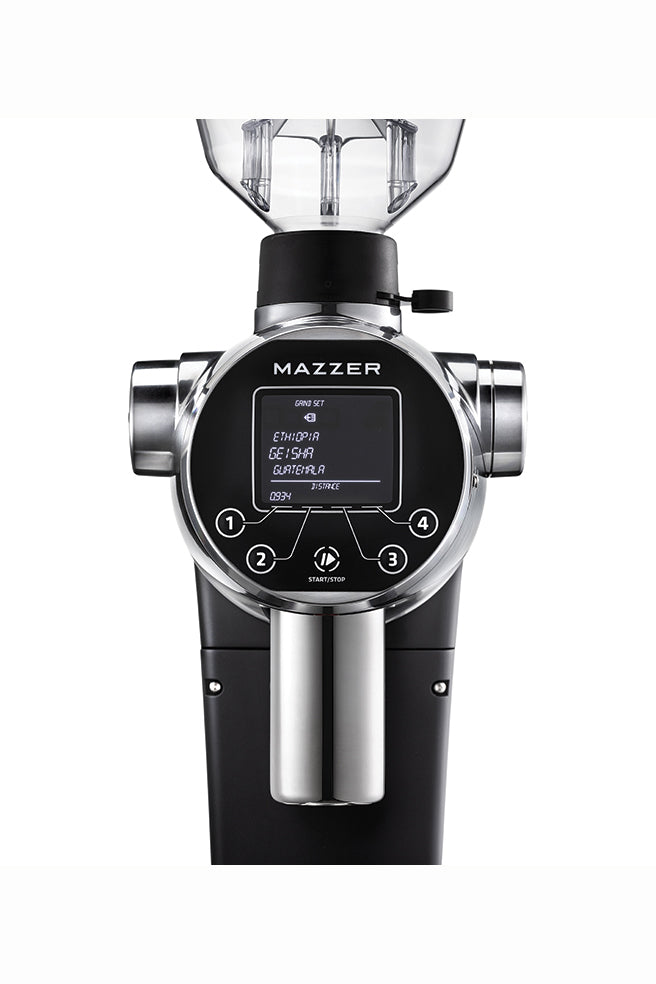

DIGITAL CONTROL

The digital grind adjustment controls the distance between the burrs in microns so the grind setting is understandable, accurate, and repeatable.

LOW RETENTION

Retention is less than < 0.45g and is perfect for single dosing.

SAVE YOUR RECIPES

Can record up to 20 grinding positions with customized names and features 4 pre-programmable buttons for quick recipe recall.

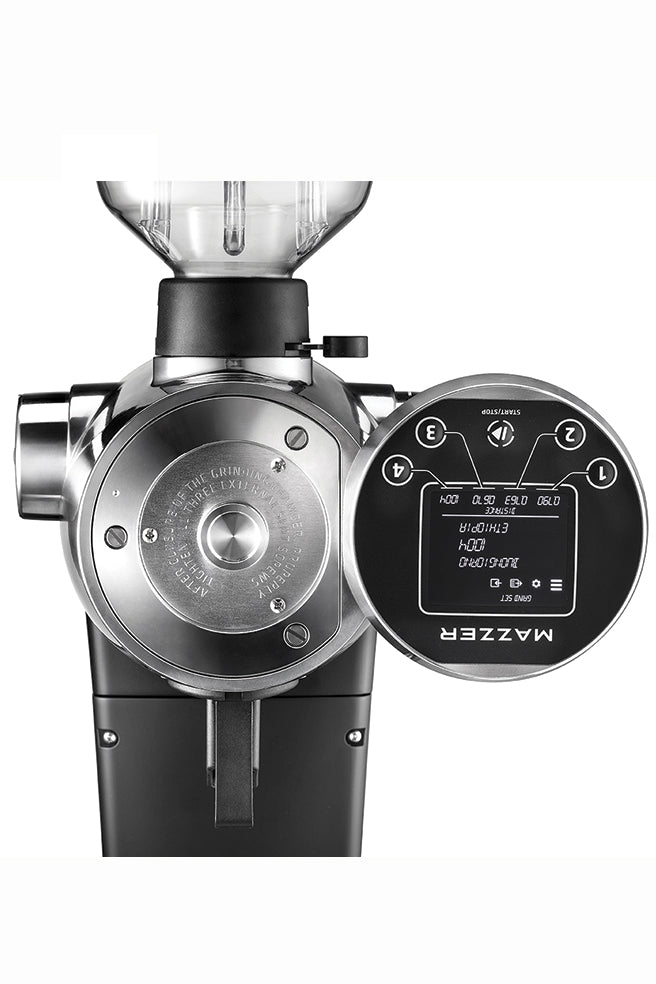

EASY CLEANING

The digital display flips to the side to allow easy access to the grinding chamber for cleaning and burr replacement.

A grinder that fits perfectly in the workflow of a specialty cafe.

The digitally controlled motor-operated grinding system is a real revolution that allows the barista to adjust the distance between the grinders in microns, to have a clear, accurate, and repeatable setting.

• Smart Knob to navigate the menu
• Alerts on service needs and statistics
• Customizable welcome message


TECHNICAL SPECS

Use: on demand/grocery

Version: electronic

Power: 800 watt

Grinding adjustment: Digital grind adjustment

Burrs: Flat special steel burrs

Diameter standard burrs: Ø 83 mm - 3 1/4 inches

Standard fitted burrs: k151F for filter. Upon request k151G filter or K151B espresso or k151I hybrid

Weight: 33 kg (72 lbs)

RPM: 900 rpm @50Hz | 1050 rpm @60Hz

Body: aluminum die casting

Hopper capacity: 0.32 kg (0.7 lbs)

Cooling system: Double fan cooling system

Optional hoppers measures: 1 | 3 kg (2 | 9 lbs) hopper

Output: medium

Extraction method: filter or espresso

Recordable grind settings: 20

Recordable time settings: 4

Warranty: One Year

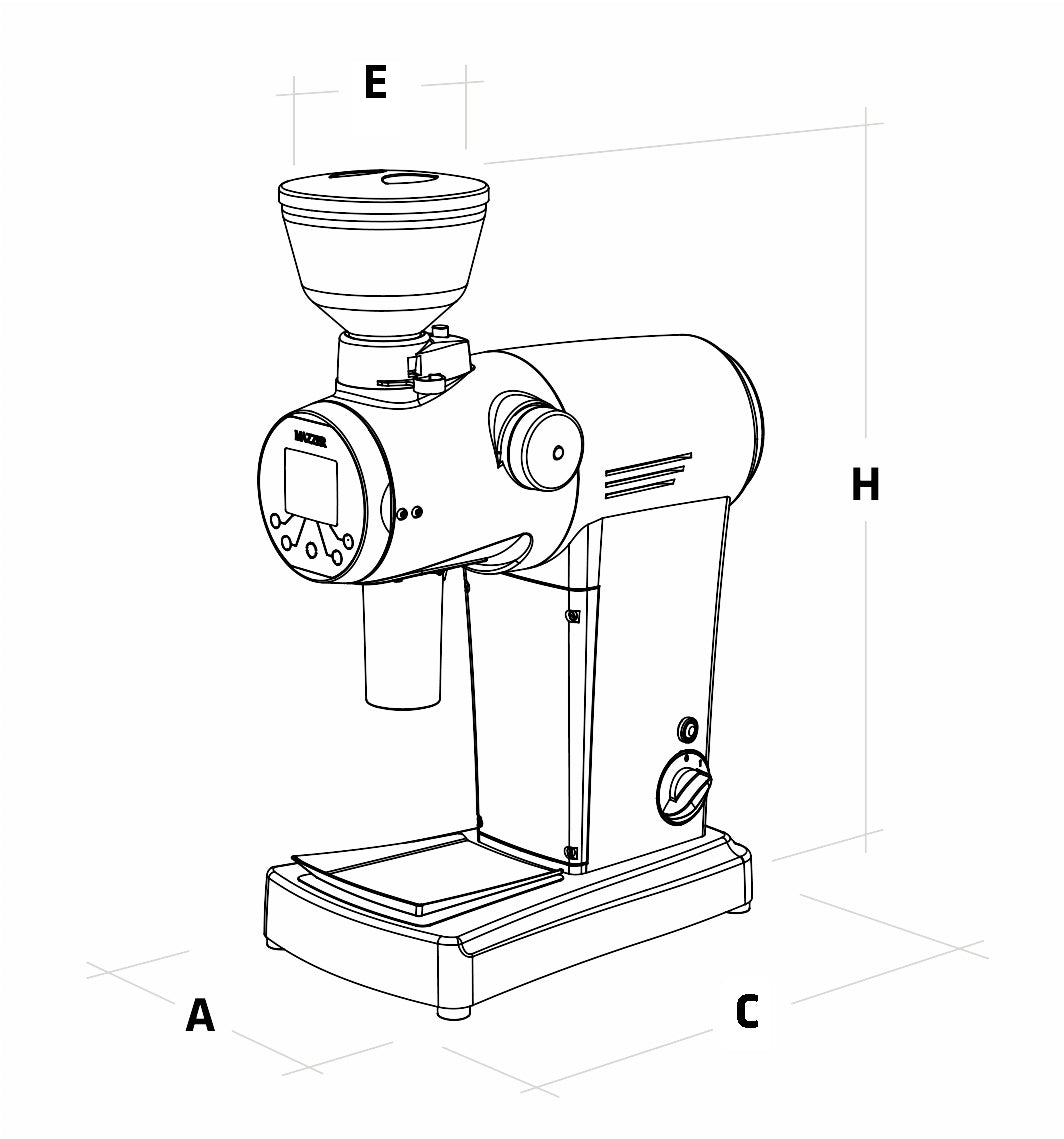

	mm	inches
A	245	9 3/4
C	430	17
E	160	25 1/2
H	645	25 1/2
H hopperZM 0.32 kg (standard)	645	25 ½
