ESPRESSO & FILTER | SINGLE DOSING | DIGITAL CONTROL
The ZM Plus boasts all the features of the digital ZM grinder, plus a special unit that facilitates both the espresso and filter coffee grinding processes, thereby making it a powerful, flexible tool for speciality coffee. Its multifunctional features include universal portafilter holder for espresso, quick-connect canister for filter coffee and bag holder.
Click Here for Brochure
The flexible grinder designed for specialty coffee
The ZM Plus features a minimum retention to allow for single doses. It boasts a digital grind adjustment system which allows the barista to control the distance between the burrs (in microns), so as to ensure that the grind setting is understandable, accurate and repeatable.
- On-demand dosing capability – adjustable grinding time
- Patented lockable canister to keep coffee grounds from getting on the counter
- The digital display flips to the side to allow easy access to the grinding chamber for cleaning and burr replacement
- Flat burrs specifically designed and tested to grind for filter coffee or espresso
- Secure double safety switch
KEEP IT SAFE
TRUE ZERO CALIBRATION
DIGITAL CONTROL
SAVE YOUR RECIPES
A grinder that fits perfectly in the workflow of a specialty cafe.
20 pre-set grind settings can be saved on the digital display; plus there are 4 pre-programmable buttons to quickly bring up the most popular recipes or dosing times.

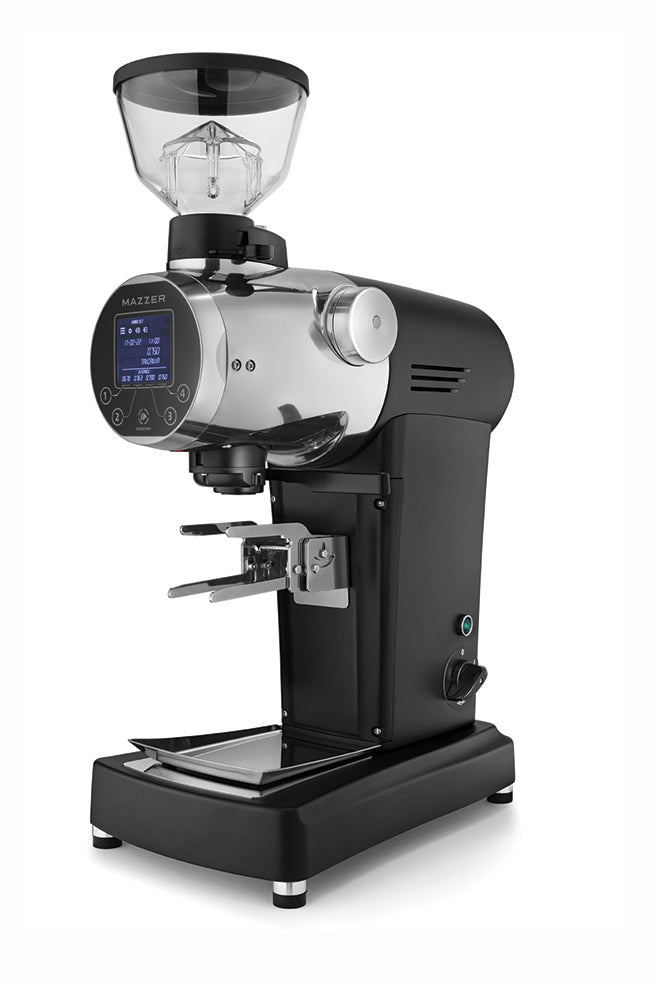

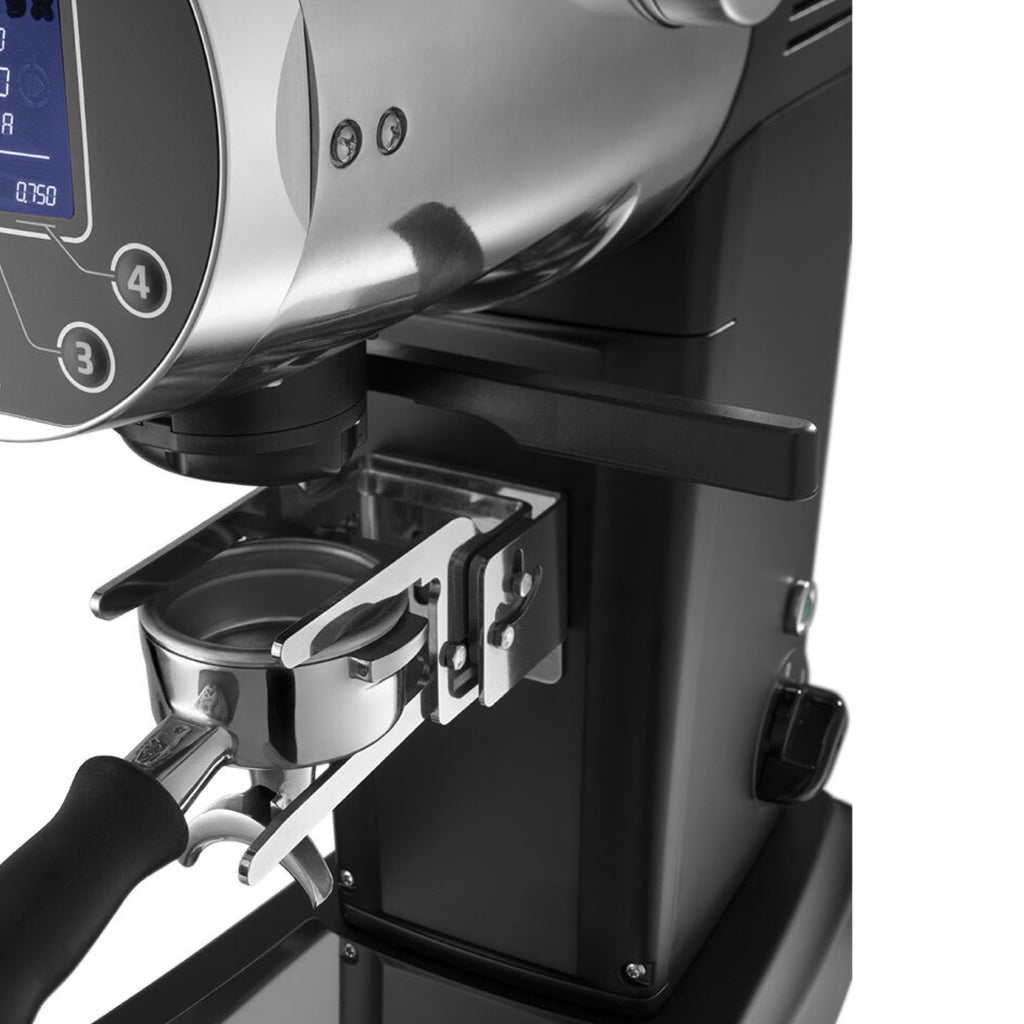

- The retractable holder allows to grind coffee directly into the portafilter basket (espresso).
- The minimum retention enables single dosing.
- Thanks to the modular system, the barista can choose whether or not to use the portafilter holder, the bag holder or the quick-connect canister before each grind.

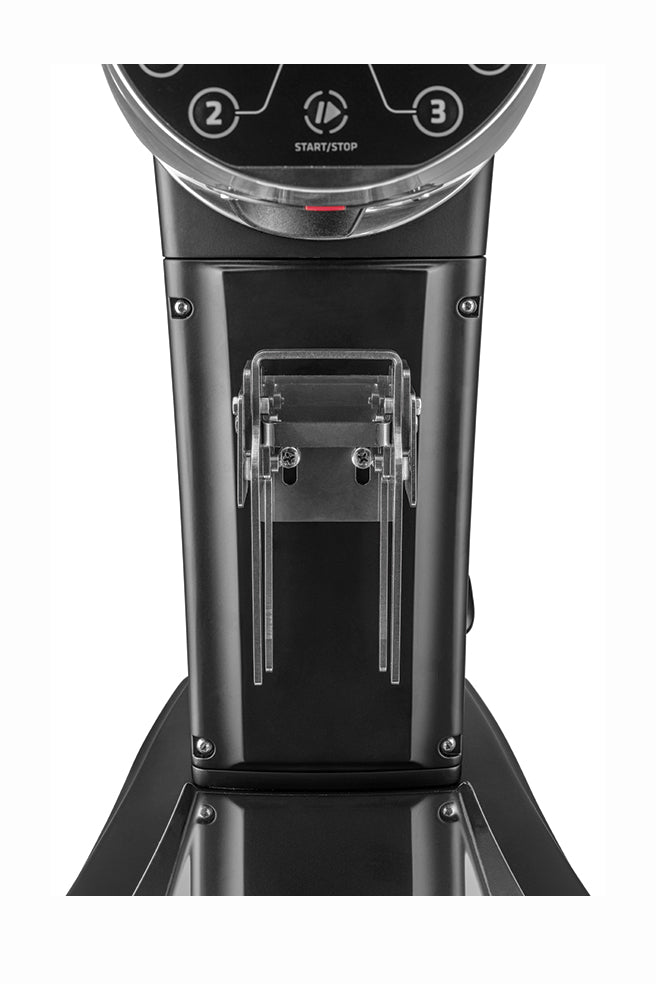

- The portafilter holder is adjustable and fits any basket.
- During set-up, there is the option to choose burrs for espresso, filter or hybrid burrs (espresso and filter).
TECHNICAL SPECS
Use: on demand/grocery
Version: electronic
Power: 800 watt
Grinding adjustment: Digital grind adjustment
Burrs: Flat special steel burrs
Diameter standard burrs: Ø 83 mm - 3 1/4 inches
Standard fitted burrs: either k151F for filter or k151G filter or K151B espresso or k151I hybrid
Weight: 39 kg (85 lbs)
RPM: 900 rpm @50Hz | 1050 rpm @60Hz
Body: aluminum die casting
Hopper capacity: 0.32 kg (0.7 lbs)
Cooling system: Double fan cooling system
Optional hoppers measures: 1 | 3 kg (2 | 9 lbs) hopper
Output: medium
Extraction method: espresso single dosing and filter
Recordable grind settings: 20
Recordable time settings: 4
Warranty: One year

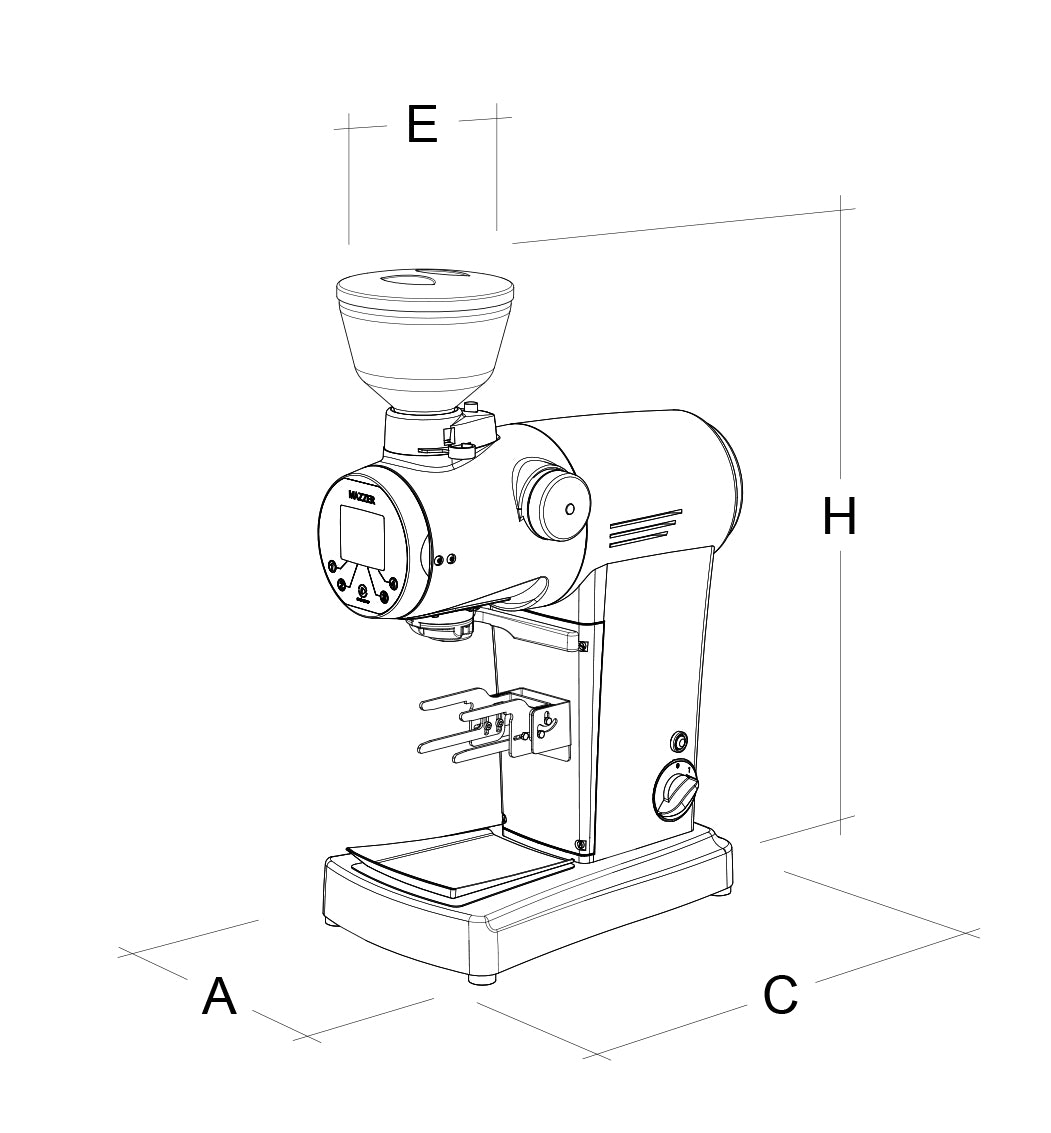

mm | inches | |
---|---|---|
A | 245 | 9 3/4 |
C | 430 | 17 |
E | 160 | 25 1/2 |
H | 645 | 25 1/2 |
H hopperZM 1.3 kg (standard fitted upon request) | 720 | 28 ½ |
H hopperZM 0.32 kg (standard) | 645 | 25 ½ |
